Voice Cabling in Northbrook, IL: Fax Line Troubleshooting

This article highlights the successful completion of a Voice cabling in Northbrook, IL. The project involved troubleshooting of the inactive Ethernet port in an existing office.

Call 1-866-417-3945 to request a quote or free consults.

Project Scope of Work

Our team of onsite IT support in Northbrook, IL, received a service request to troubleshoot a faulty fax line. The client suspected a possible break in the existing line. After assessment and planning, we identified the following scope of work.

Troubleshoot and repair the fax line
Client believes there may be a break in the line somewhere. If necessary, run a new cable drop.
Terminate, test and label the new drop at each end
Bring the port online and confirm with the onsite/offsite POC

Project Execution: Voice Cabling in Northbrook, IL

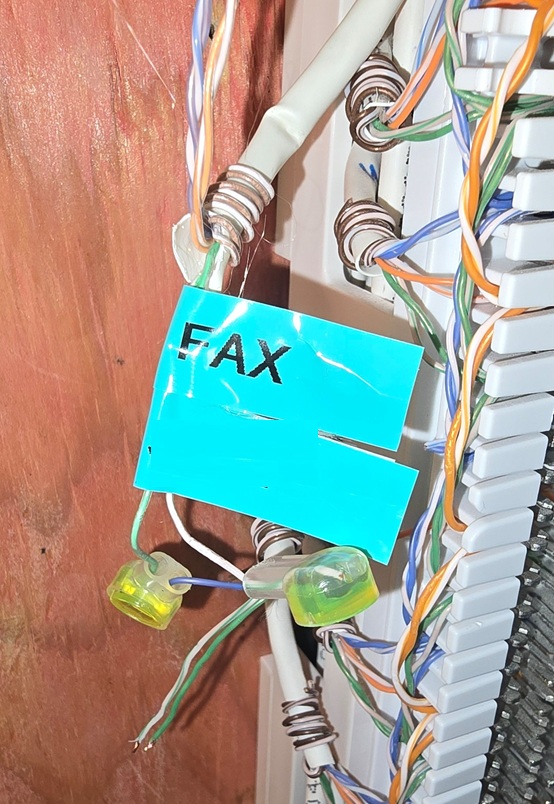

Our certified cable installers arrived onsite in Northbrook, IL and began inspecting the wall jack and testing the line for signal continuity. The test confirmed there was no dial tone at the jack. This indicates a wiring or termination fault within the voice cabling connection. Further inspection revealed an incorrect punch-down termination. They discovered that the white/orange pair had been mistakenly punched down instead of the standard white/blue pair used for voice communication.

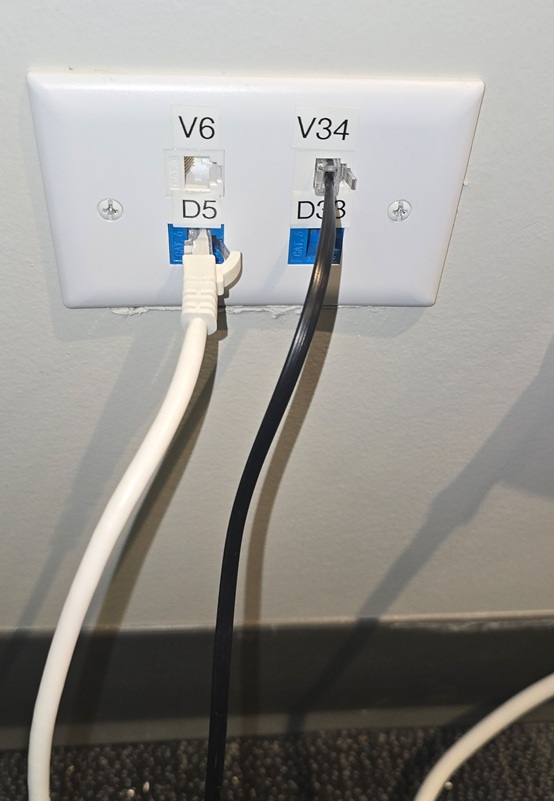

They corrected the issue by replacing the wall jack and re-punching the correct pair (white/blue to white/blue) on the jack module. After re-termination, they retested the line and confirmed a proper signal. The dial tone was successfully restored, and the fax line was verified functional through end-to-end testing with both onsite and offsite contacts. They also labelled the port for reference to maintain accurate documentation and simplify future maintenance.

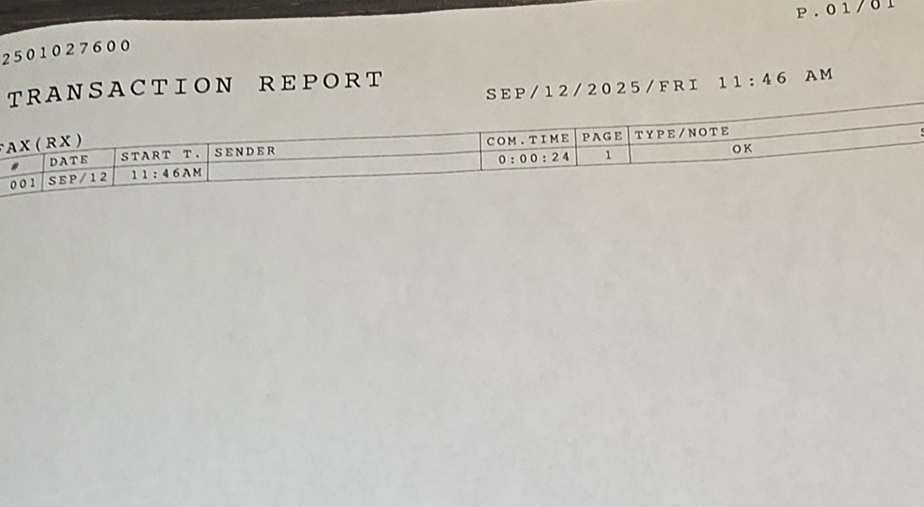

They performed sample fax transaction report. This verifies that the fax line and machine successfully confirm proper line functionality.

This IT network services in Northbrook, IL effectively resolved the fax line issue without the need to run a new cable drop.

Key Takeaways

This project about Voice Cabling in Northbrook, IL was successfully resolved a fax line connectivity issue that initially presented as “no dial tone at the jack.” Upon investigation, the issue was traced to an incorrect punch-down configuration, where the cable was terminated on the wrong wire pair. The technician corrected the termination by re-punching the appropriate white/blue pair, replaced the faulty jack, and restored full dial tone functionality.

Through systematic troubleshooting, repair and verification, the fax line was online and confirmed operational with the onsite point of contact. This project highlights the importance of precise cable termination and testing procedures in maintaining reliable voice communication systems within commercial environments.
