This article features a successful Cat6 cable testing and re-termination in a retail business site in Zionsville, IN. Our onsite IT support tech resolved the issue and all data drops were up and functional.
Scope of Work

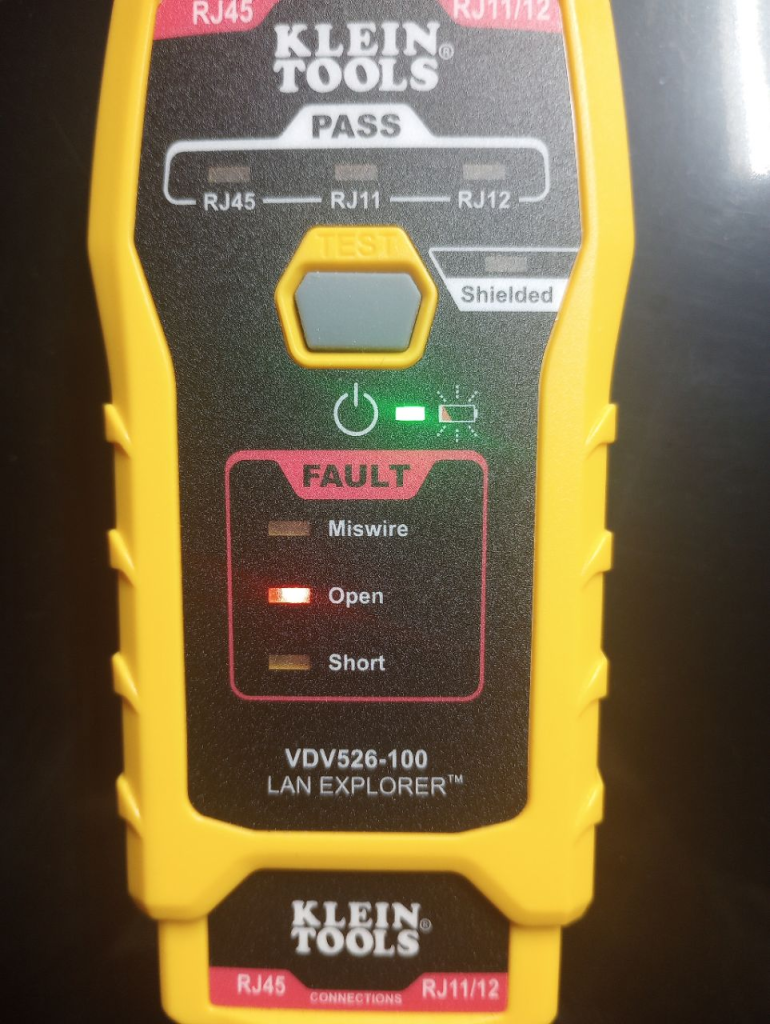

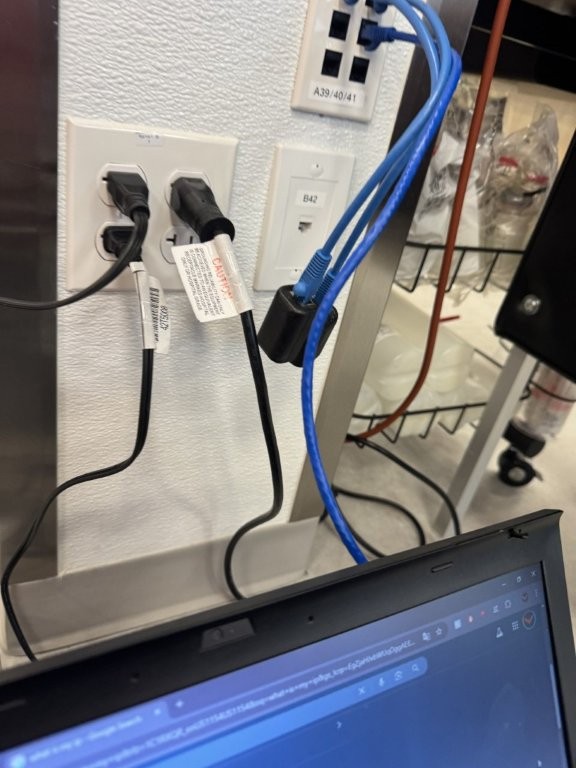

Our onsite IT support techs in Zionsville, IN received a service request. The client reported the non-functional Cat6 data ports at their business sites. The local technicians arrived at one of the site locations to test the data drops using Klein Tools cable tester (see below photo). It is verified that five data drops were open and this would require additional Cat6 cable testing from the cable runs coming in from office areas into the IT data room. Additional equipment is required to access the location.
On the second visit, our team tasked to perform the following:
- To test and re-terminate faulty ports to meet industry standards.
- Validate the functionality of all ports (online) with onsite/offsite POC
- Document the service call for Cat6 data cabling with photos and close-out notes
Data Cable Testing in Zionsville, IN

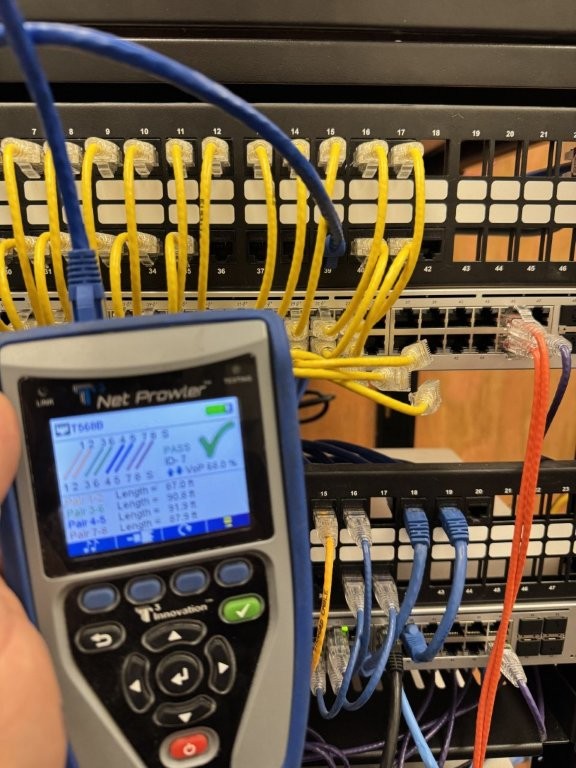

Our data cabling services in Zionsville, IN arrived onsite to perform the testing and troubleshooting using Net Prowler tool. A tool used to:
- To test and verify ethernet cables. (e.g., pin mapping, length, shorts, opens, mis-wires, and split pairs)
- Identifying and diagnosing network issues.
- Checking PoE (power-over-ethernet) presence.
- Detecting network devices (via ping or network scan).

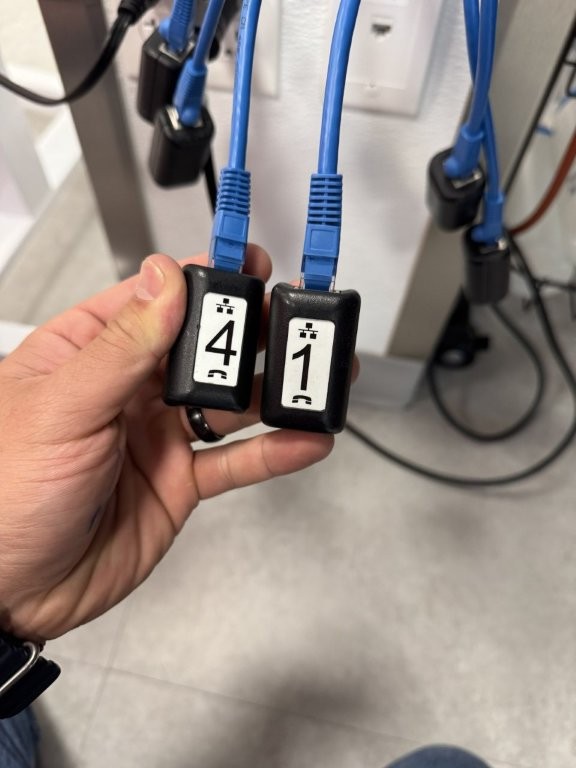

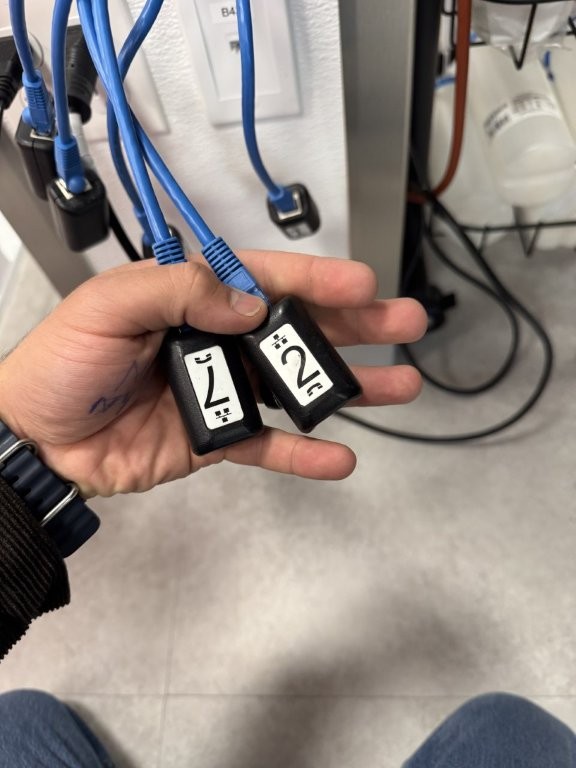

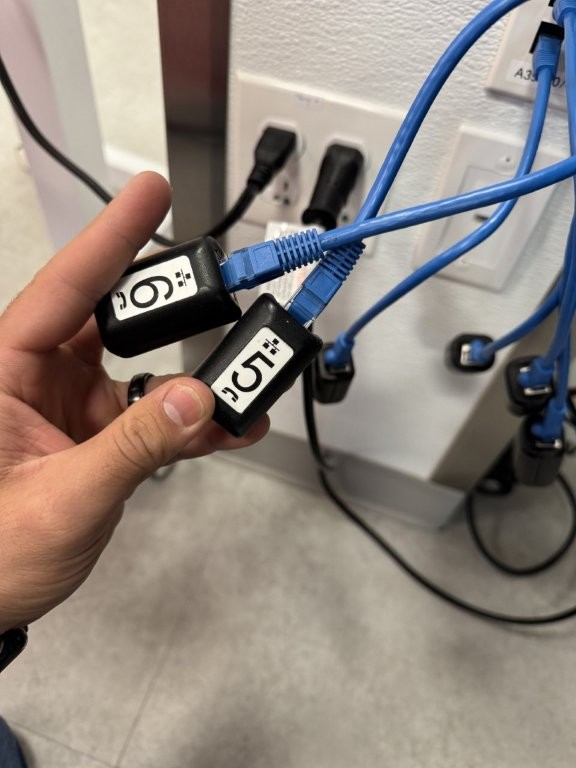

It comes with Smart Remote Modules to help our onsite IT technicians to test and identify multiple cable runs from a single location. Each Smart Remote has a unique number or identifier (#1, #2, #3…), so the tester can match each remote to a specific cable easily. This also help verify pin mapping, mis-wires, shorts, opens, and split pairs from the remote end.

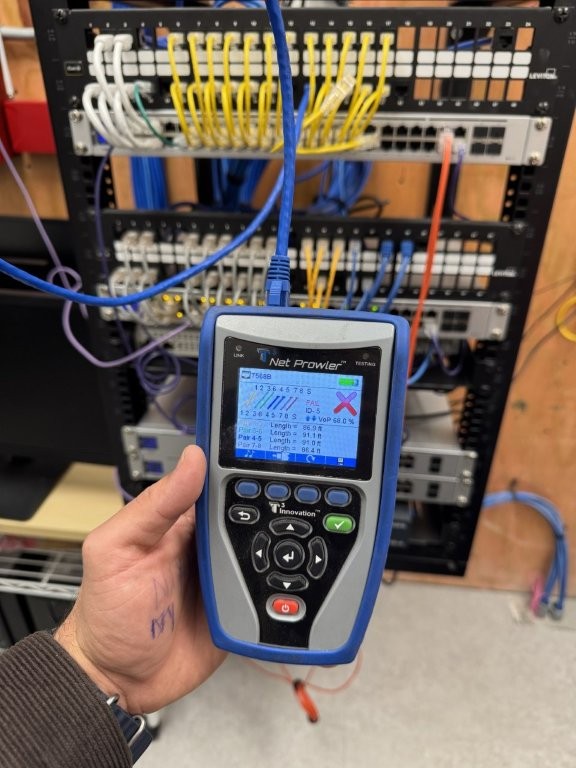

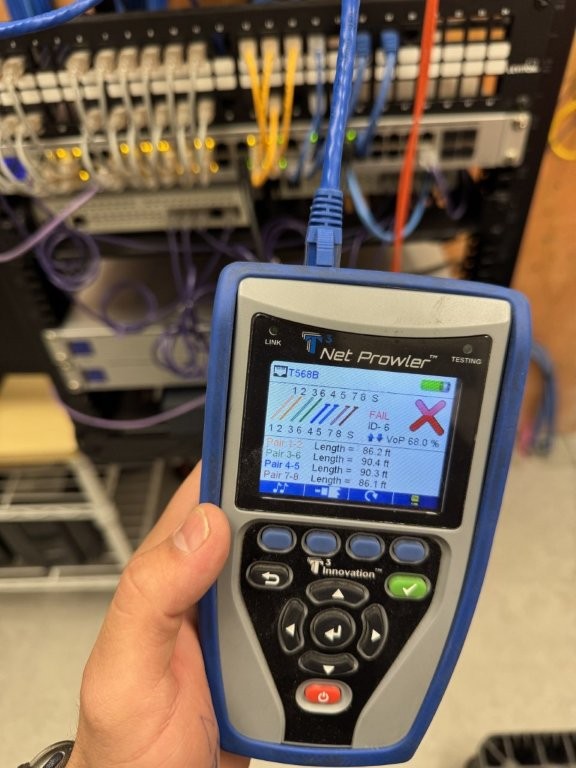

Based on the test results, 2 out of 6 ports failed due to wiring issues.

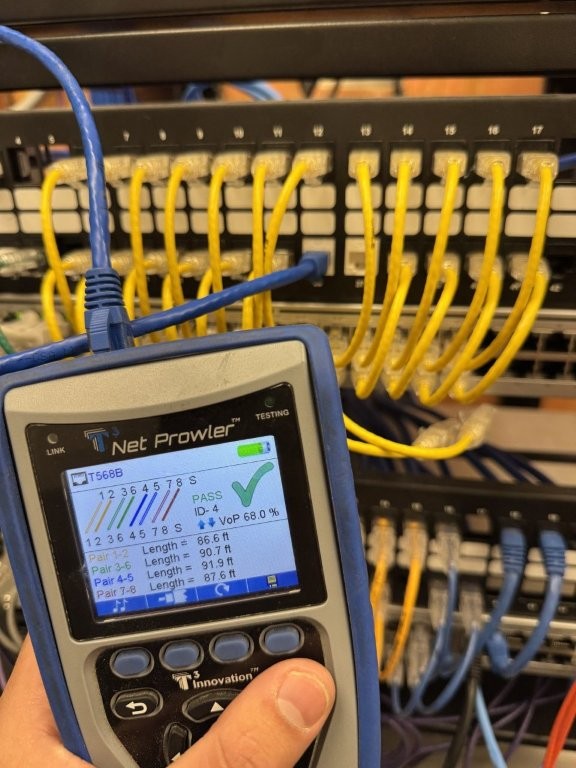

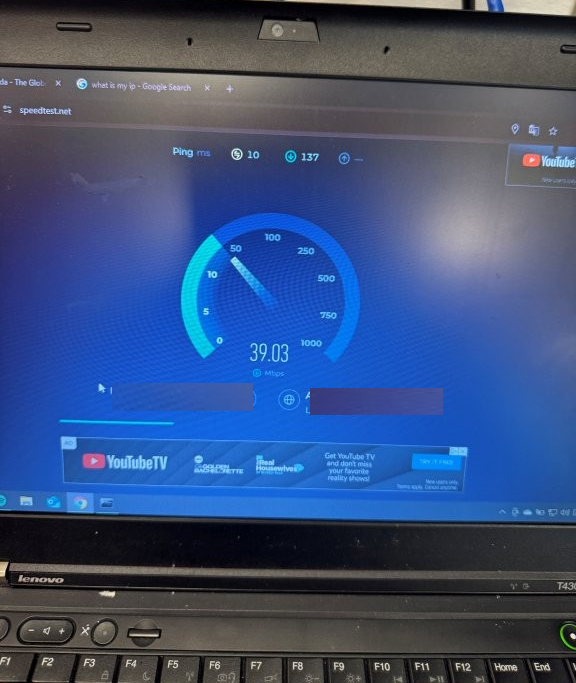

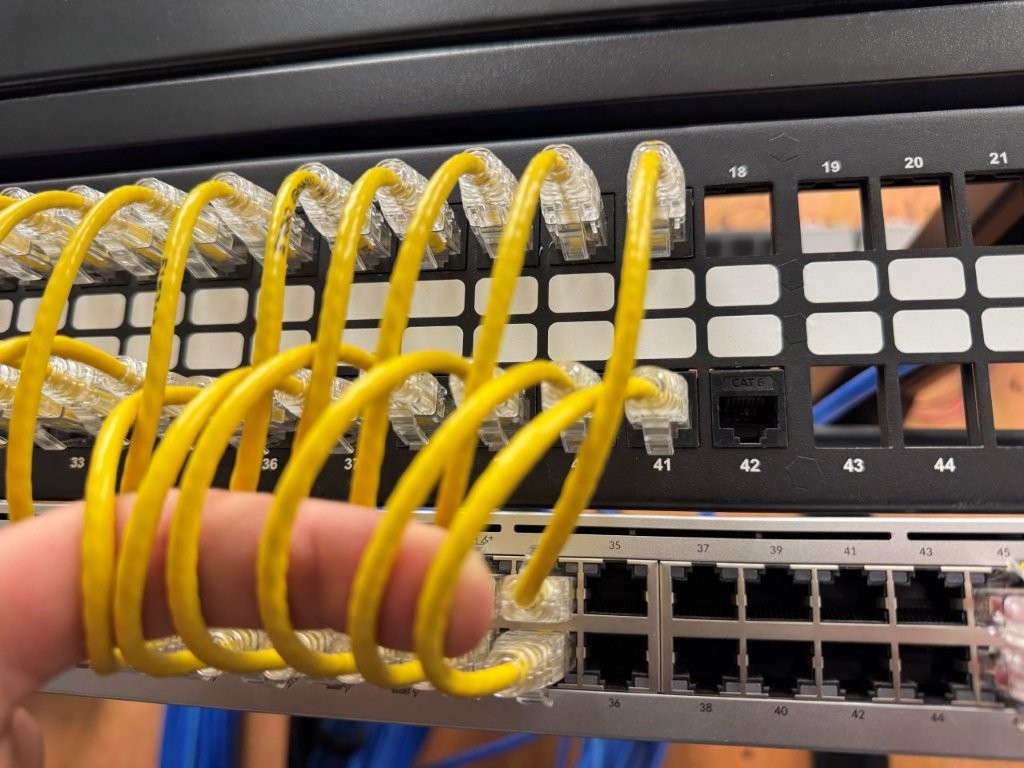

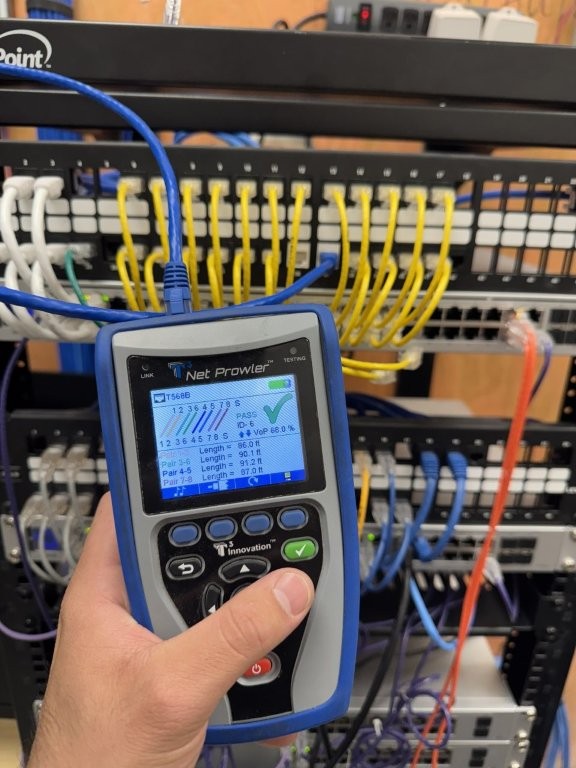

The onsite IT support technician re-terminated the two cables and performed a retest, confirming that both ports passed successfully. The team also verified Internet connectivity, which tested successfully.
Conclusion
The Cat6 cable testing and re-termination project in Zionsville, IN, was completed successfully. Our onsite IT support team efficiently identified and resolved wiring issues affecting network connectivity by re-terminating faulty Cat6 ports, testing all connections using professional diagnostic tools, and verifying full functionality with the client’s point of contact. With all ports now operational and clearly labeled, the client can rely on a stable and well-documented network infrastructure across the site. This project underscores our commitment to delivering reliable, standards-compliant cabling solutions.
