This article highlights a successful CAT6 data cabling installation project in Fort Wayne, IN, detailing the structured cabling run from the Main Distribution Frame (MDF) to a fully-equipped conference room. The installation required approximately 70 feet of CAT6 plenum-rated cable, ensuring high-speed data transmission and compliance with fire safety standards for commercial environments.
Project Scope of Work
Our team received a service request for data cabling installation in Fort Wayne, IN, with the following scope of work:
- Install a CAT6 cable drop with an estimated run of 70 to 100 feet.
- Terminate, test, and label the cable at both ends for clear identification.
- Verify connectivity and performance with the designated onsite or offsite point of contact.
- We provide other parts and materials to complete the work professionally with the customer’s approval.
- Provide photo documentation and detailed close-out notes upon completion.
CAT6 Cable Drop Installation
Our onsite IT support tech in Fort Wayne, IN arrived onsite and conducted an on-site inspection to confirm the cable path from the Main Distribution Frame (MDF) to the conference room. Validate the estimated total run of approximately 70 feet, accounting for:
- Horizontal run across ceiling tiles
- Vertical drops in both the conference room and the data room
- An extra 5 to 10 feet of slack for contingencies and service loops
Begin cable pull from the MDF, routing through the drop ceiling using approved supports such as hooks and zip ties. Avoid sharp bends, tension, or close proximity to electrical wiring to reduce EMI (electromagnetic interference).
Terminate the cable using proper CAT6 RJ45 connectors or keystone jacks, depending on the setup. Follow TIA/EIA 568B wiring standard for consistency. At the MDF end, terminate to a patch panel as specified. In the conference room, terminate to a wall plate for a clean and professional finish.

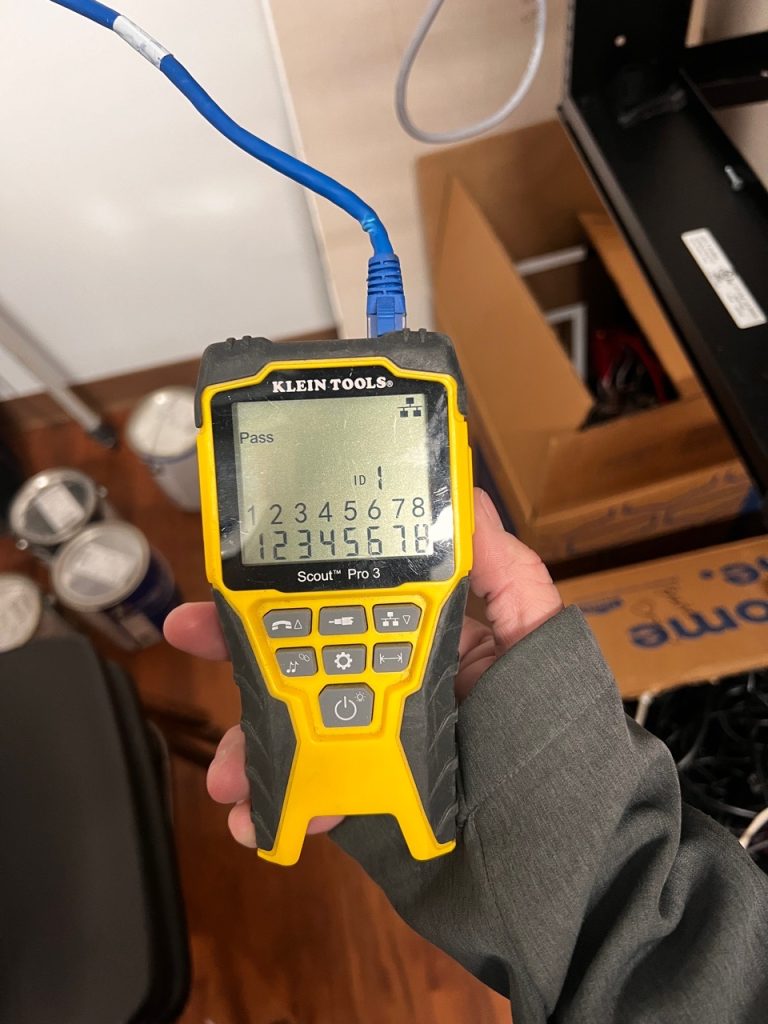

Using a Klein Tools Scout® Pro 3 network tester, the CAT6 cable was verified for proper continuity, correct pin-out (1 through 8), and signal integrity, all of which passed successfully as indicated on the device display. The cable was confirmed to meet installation standards and is ready for network use.
The new CAT6 cable was successfully terminated at the patch panel. The cable was labeled accordingly and routed neatly among existing infrastructure to maintain organization and accessibility. Patch connections were made using proper bend radius practices and secured to avoid strain on the ports. A functional link was verified between the patch panel, confirming operational.
Conclusion

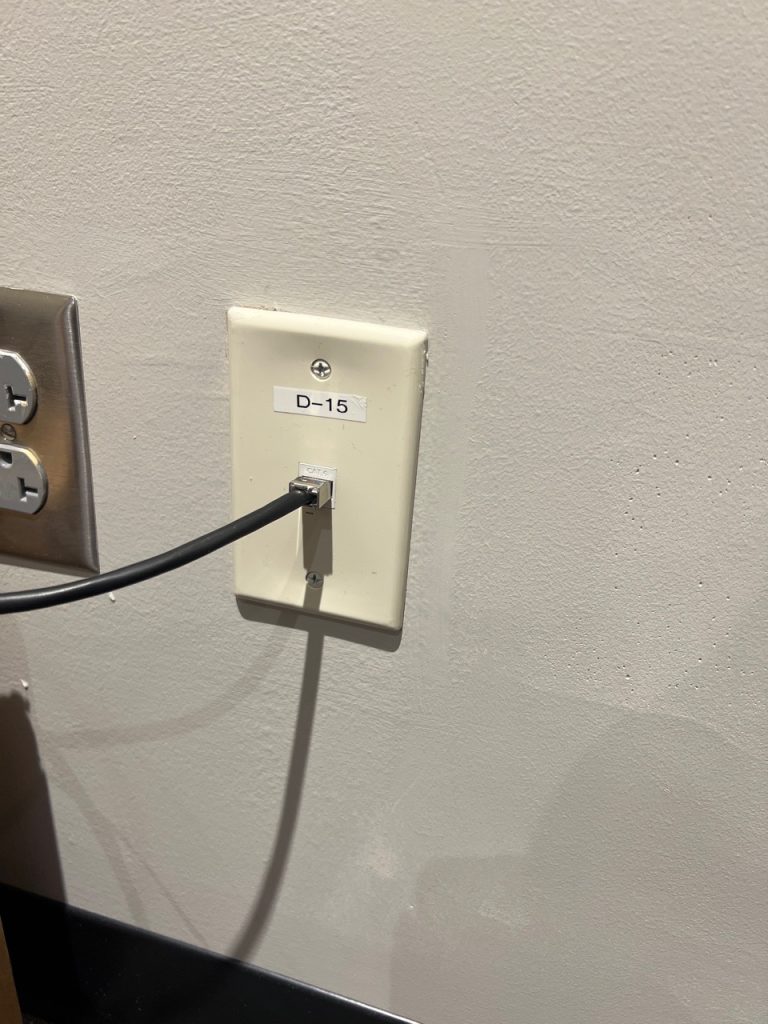

The CAT6 plenum-rated cable run from the Main Distribution Frame (MDF) to the designated conference room endpoint was completed successfully. Test results confirmed full continuity, correct pin-out, no cross-talk or split pairs, and signal integrity suitable for gigabit Ethernet performance. Both cable ends were clearly labeled with the drop ID.
All work was documented with photos and close-out notes. The drop is now live and confirmed operational, ready for integration into the client’s network device.
